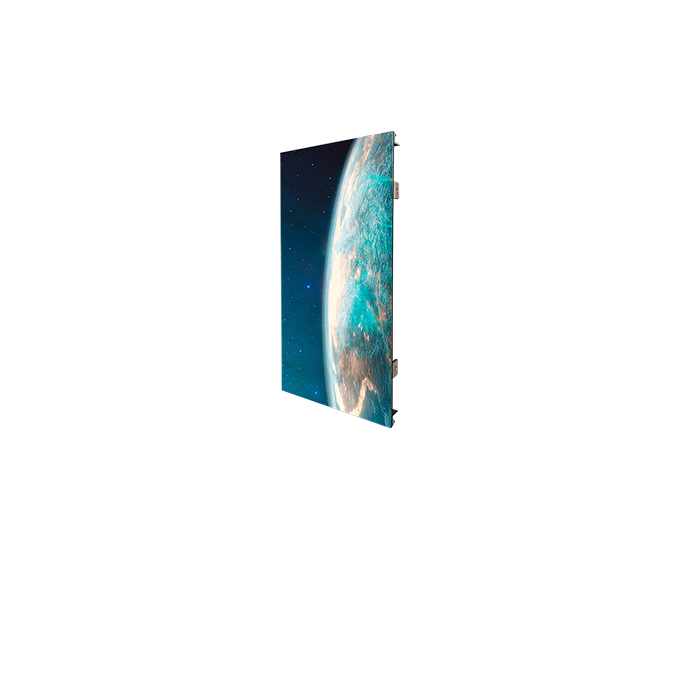

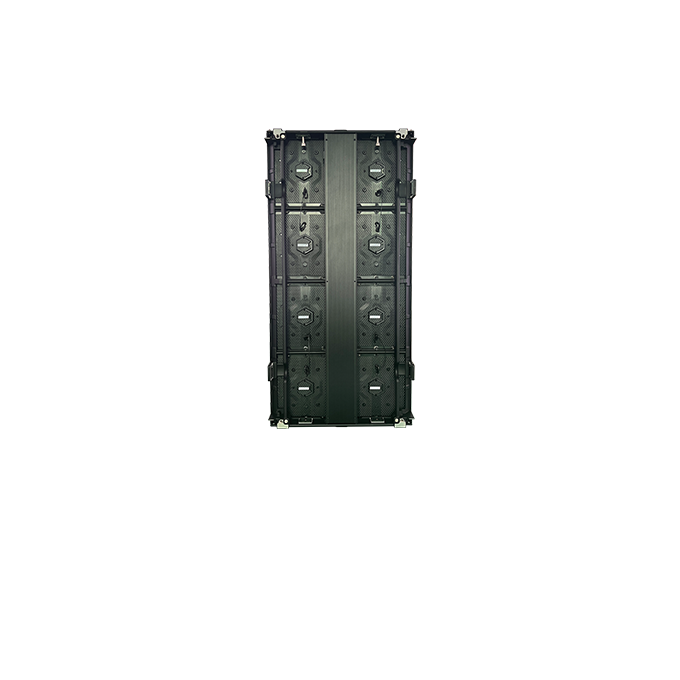

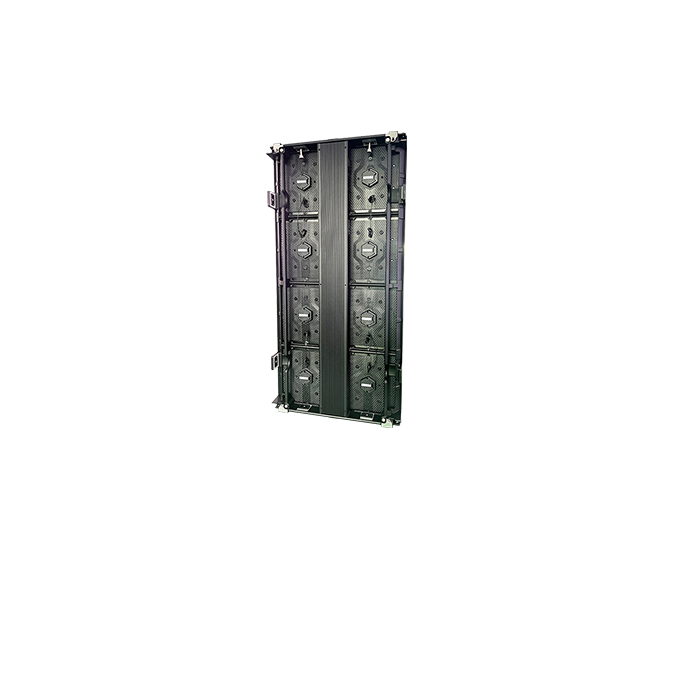

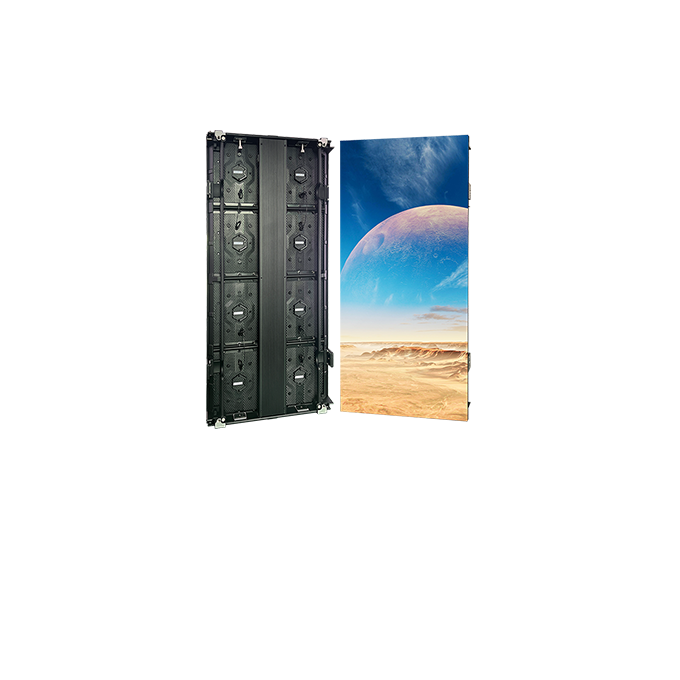

Inpad Max


Pixel Pitch: 1.95mm/2.6mm/2.9mm/3.9mm/4.8mm

Module Size: 250*250mm

Panel Size: 500*500mm/500*750mm/500*1000mm

Panel Weight: 23.4KG/sqm

Brightness.: 800-1000Nits

Refreshment: 3840Hz

Grey Scale: 14Bits

Max power consumption: 440-560W/sqm

Ave power consumption: 150-200W/sqm

Waterproof Level: IP20

Maintenance Type: Front/Rear

Certificate: CE EMC 3C ETL

Buy now

Key Features:

  • Universal HUB design for all pixel pitch.
  • Hard connection design for modules.
  • Totally front and rear installation and maintenence
  • Optional for high brightness 3,500nits.
  • Fast lock system for up&down, left&right.
  • Flexible cabinet size for more applications.
